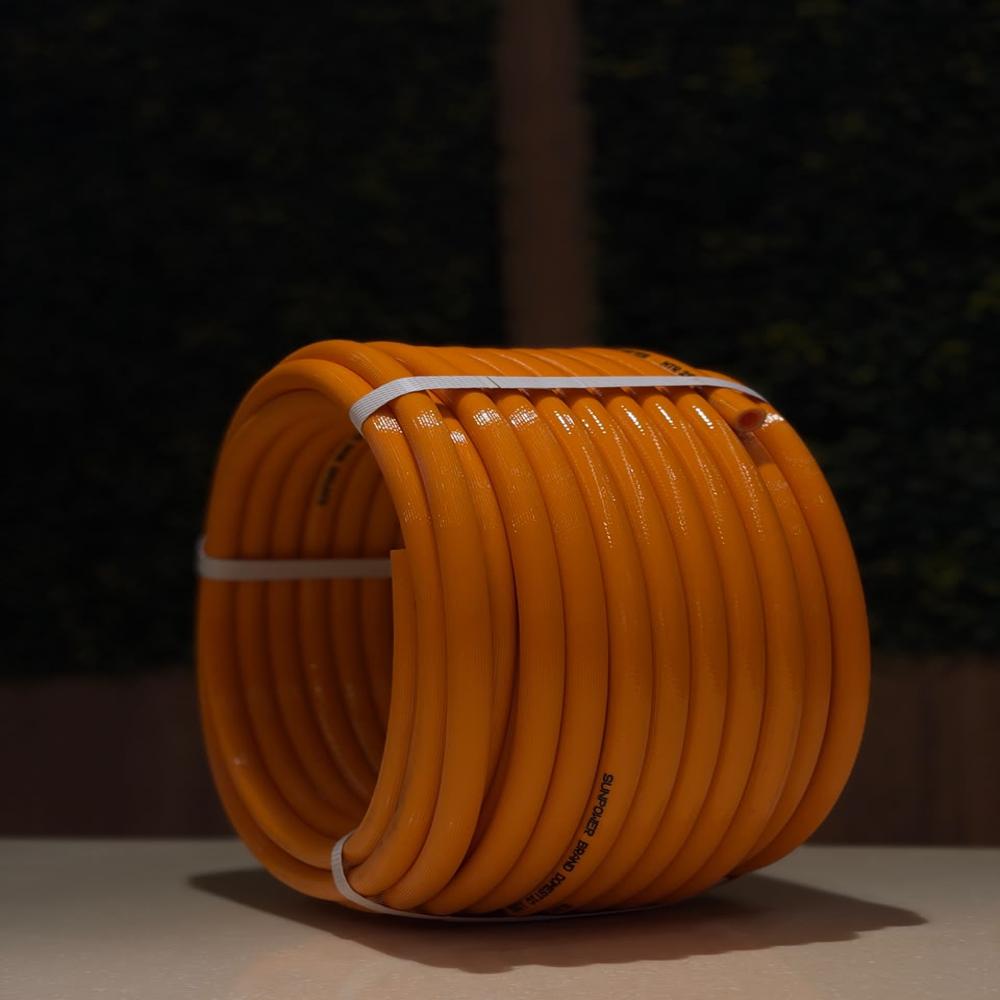

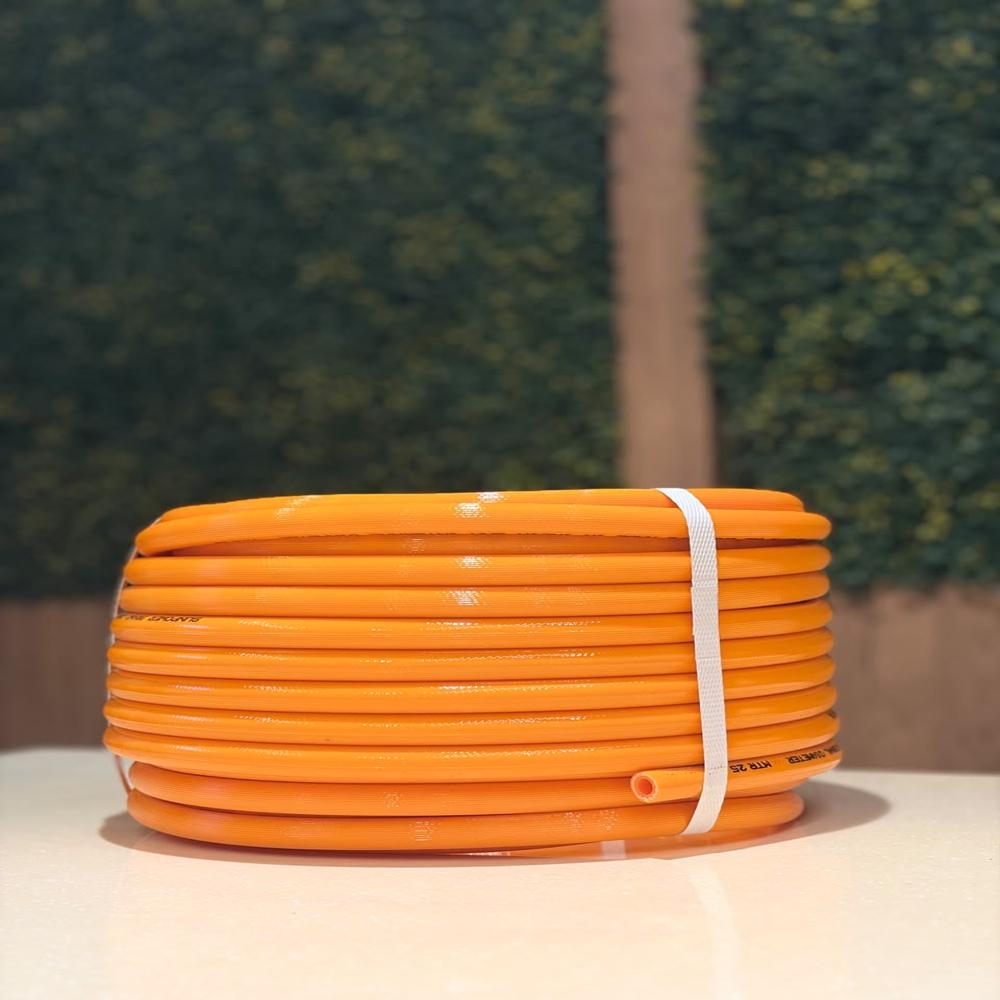

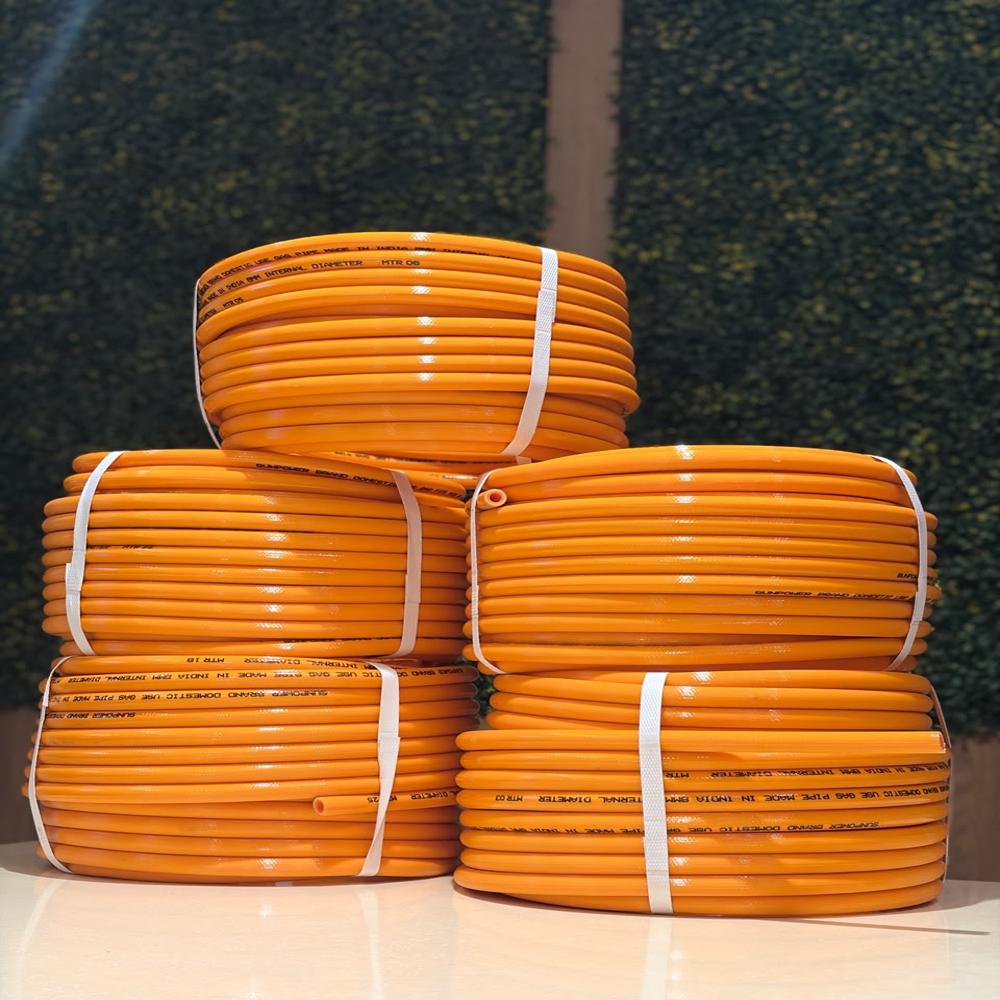

5 Layer Spray Pipe

Get a Price/Quote

MOQ : 100 Pieces

5 Layer Spray Pipe Specification

Diameter
12 mm, 16 mm, customizable

Bend Radius
Minimum 10x outer diameter

Flexibility
High flexibility for easy installation

Yield Strength
15 MPa

Thread Type
Not applicable (push-fit/barbed recommended)

Sealing Type
Leak-proof push-fit/barbed joints

Temperature Range
-10C to 60C

Tolerance
0.2 mm

Tensile Strength
18-22 MPa

Coating Type
UV stabilized coating

Connection Type
End-fit or insert connectors, quick coupling

Product Type
5 Layer Spray Pipe

Material
Other

Connection
Barbed or compression fittings

Shape
Round pipe (coil form)

Standard
Other

Surface Treatment
UV Resistant, Smooth finish

Outer Diameter
12 mm, 16 mm, or as specified

Section Shape
Circular

Length
100 m/roll (typical)

Thickness
2 - 5 mm (variable by model)

Color
Orange (outer layer)

Usage
Water and nutrient spraying for irrigation

Rated Pressure
4 bar (max)

Application
Agricultural irrigation, nurseries, gardens

Material Grade
Food grade PE/EVOH composite

Layer Composition
Outer UV-resistant PE, bonding adhesive, EVOH barrier, bonding adhesive, Inner PE

Compatibility
Compatible with all standard micro-irrigation systems

Flow Rate
2-8 LPH per meter (depending on hole size and pressure)

Weight per Roll
2.5 - 4.5 kg per 100 m

Odor/Contaminant Migration
Zero, certified food grade material

Installation
Suitable for laying above or below ground

Perforation Pattern
Uniformly spaced micro-holes for consistent spray

Markings
Meter marking and batch number for traceability

Resistance
Resistant to algae, chemicals, and abrasion

Service Life
Up to 5 years under recommended use

Burst Pressure
Above 8 bar

5 Layer Spray Pipe Trade Information

Minimum Order Quantity
100 Pieces

Payment Terms
Cash in Advance (CID)

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About 5 Layer Spray Pipe

Grab the top-rated 5 Layer Spray Pipe, engineered to offer optimum performance for your valiant irrigation needs. Its ravishing orange outer UV-resistant PE layer, EVOH barrier, and durable adhesives ensure reduced breakdown rates and a service life of up to 5 years. Uniformly spaced micro-holes provide consistent spray, supporting flow rates from 2-8 LPH per meter. This IS/ISO certified pipe boasts zero odor or contaminant migration, exceptional flexibility, and resistance to algae, chemicals, and abrasion. Suitable for all standard agricultural, nursery, and garden systems in India, it sets a new benchmark for reliability and food safety.

Extensive Application and User Guidance for 5 Layer Spray Pipe

The versatile 5 Layer Spray Pipe is highly suitable for agricultural irrigation, commercial farms, nurseries, and home gardens. It can be laid above or below ground with ease due to its flexible, robust structure. For optimum usage, simply connect via push-fit or barbed fittings to standard micro-irrigation systems and ensure secure end-fit or insert connectors. Uniform micro-hole perforations guarantee even distribution of water and nutrients, maximizing plant health and growth for both small and large-scale operations.

Supply Efficiency, Payment Flexibility, and Quick Delivery for 5 Layer Spray Pipe

We offer a high supply rate for the 5 Layer Spray Pipe, supported by dependable transport services across India. Various payment terms are accepted to suit your commercial needs, making the ordering process seamless. Delivery times are efficient, and product arrival is typically swift, ensuring your agricultural or commercial operation never experiences delays. Each roll is packed with clear batch marking for reliable traceability and inventory management, helping you keep projects on schedule.

FAQ's of 5 Layer Spray Pipe:

Q: How is the 5 Layer Spray Pipe installed for optimum results?

A: The 5 Layer Spray Pipe is designed for straightforward installation above or below ground using barbed or compression fittings. Its high flexibility allows easy routing, while leak-proof push-fit joints ensure a secure and durable connection.

Q: What commercial uses is this spray pipe best suited for?

A: This spray pipe is ideal for agricultural irrigation, nurseries, commercial farms, and gardens. Its food-grade material and resistance to chemicals and abrasion make it a reliable choice for both small-scale and large operations.

Q: When can I expect delivery after placing an order?

A: We prioritize efficient fulfillment. Transport services facilitate prompt dispatch, and arrival times are usually swift, subject to your location and chosen payment terms. Tracking and batch numbers ensure transparency throughout the process.

Q: Where can the 5 Layer Spray Pipe be utilized most effectively?

A: It performs best in open fields, greenhouses, nurseries, and garden beds, supporting both surface and sub-surface irrigation. Its uniform perforation pattern ensures even water distribution regardless of application site.

Q: What are the main benefits of using a 5 Layer Spray Pipe in irrigation systems?

A: The pipe delivers consistent spray, is resistant to UV, algae, and chemicals, offers zero migration of odor or contaminants, and is built from certified food-grade materials. It supports longevity, sustainability, and optimal plant growth.
