Column Pipe Accessories

• Application
• other, Submersible Pump Column Pipe Joint

• Coating Type
• Corrosion Resistant Paint

• Color
• Green with Maroon Ends

• Connection
• Other, Threaded / Flanged

• Connection Type
• Male/Female Threaded or Flanged

• Diameter
• 114 to 10

• Flexibility
• Rigid

• Length
• 100 mm - 500 mm

• Material
• Other

• Material Grade
• FG 260/IS 210

• Outer Diameter
• 32 mm - 250 mm

• Product Type

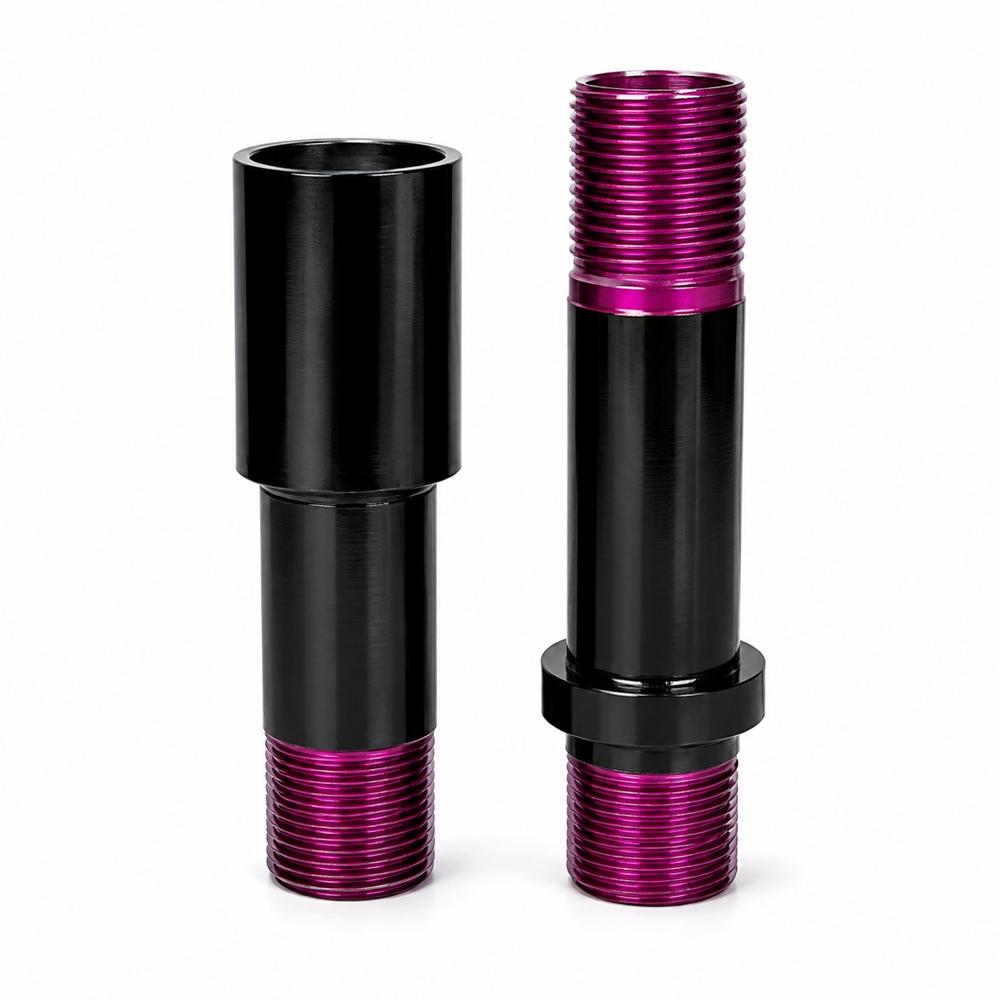

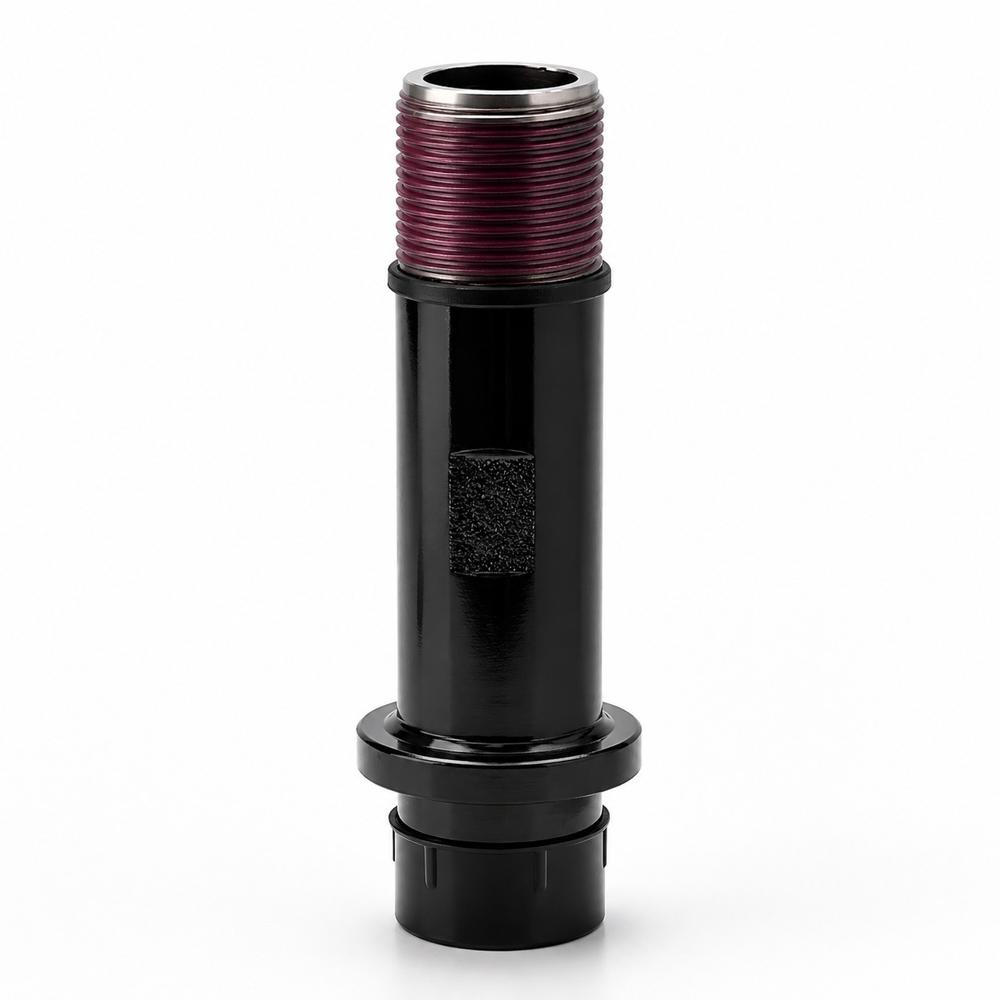

• Other, CI Column Pipe Adapter

• Rated Pressure
• Up to 16 bar

• Sealing Type
• Rubber Gasket/Thread Seal

• Section Shape
• Round

• Shape
• Other, Cylindrical

• Standard
• Other

• Surface Treatment
• Other, Epoxy Coated

• Temperature Range
• -10C to 80C

• Tensile Strength
• Up to 260 MPa

• Thickness
• 8 mm - 18 mm

• Thread Type
• BSP/Tapered Threads

• Tolerance
• 0.1 mm

• Usage
• Pipe Fittings for Column Pipes

• Yield Strength
• min. 210 MPa

• Application
• other, Submersible Pump Systems

• Bend Radius
• Rigid, Not Bendable

• Coating Type
• Anti-Rust Coated

• Color
• Metallic Silver

• Connection
• Other, Threaded

• Connection Type
• Screw/Threaded

• Diameter
• 32 mm to 150 mm

• Flexibility
• Rigid

• Length
• 120 mm to 300 mm

• Material
• Other

• Material Grade
• FG 200

• Outer Diameter
• 32 mm to 150 mm

• Product Type
• Other, Column Pipe Adapter

• Rated Pressure
• 10 Bar

• Sealing Type
• Rubber Gasket Sealing

• Section Shape
• Round

• Shape
• Other, Cylindrical

• Standard
• Other

• Surface Treatment
• Other, Polished

• Temperature Range
• -10C to 80C

• Tensile Strength
• 200-300 MPa

• Thickness
• 8-12 mm

• Thread Type
• BSP

• Tolerance
• 0.5 mm

• Usage
• Column pipe to pump connection

• Yield Strength
• 140 MPa
