BRAIDED HOSE PIPES

• Application
• other, Agriculture, Irrigation, Gardening, Construction

• Bend Radius
• 50 mm

• Color
• Blue

• Connection
• Other, Barbed or Threaded

• Connection Type
• Push Fit / Hose Clamp

• Diameter
• 8 mm (Inner Diameter)

• Flexibility
• High

• Length
• 30 meters (customizable)

• Material
• Other

• Material Grade
• Virgin PVC

• Outer Diameter
• 12 mm

• Product Type
• Other, Braided Hose Pipe

• Rated Pressure
• 10 bar

• Sealing Type
• Compression Fit

• Section Shape
• Other, Circular

• Shape
• Round

• Standard
• Other

• Surface Treatment
• Other, Smooth Finish

• Temperature Range
• -10C to +60C

• Tensile Strength
• > 35 MPa

• Thickness
• 2.5 mm

• Thread Type
• N/A (unless customized)

• Tolerance
• 0.2 mm

• Usage
• Water, Air, and General Fluid Transfer

• Yield Strength
• > 29 MPa

• Application
• other, Agricultural irrigation, nurseries, gardens

• Bend Radius
• Minimum 10x outer diameter

• Coating Type
• UV stabilized coating

• Color
• Orange (outer layer)

• Connection
• Other, Barbed or compression fittings

• Connection Type
• End-fit or insert connectors, quick coupling

• Diameter
• 12 mm, 16 mm, customizable

• Flexibility
• High flexibility for easy installation

• Length
• 100 m/roll (typical)

• Material
• Other

• Material Grade
• Food grade PE/EVOH composite

• Outer Diameter
• 12 mm, 16 mm, or as specified

• Product Type

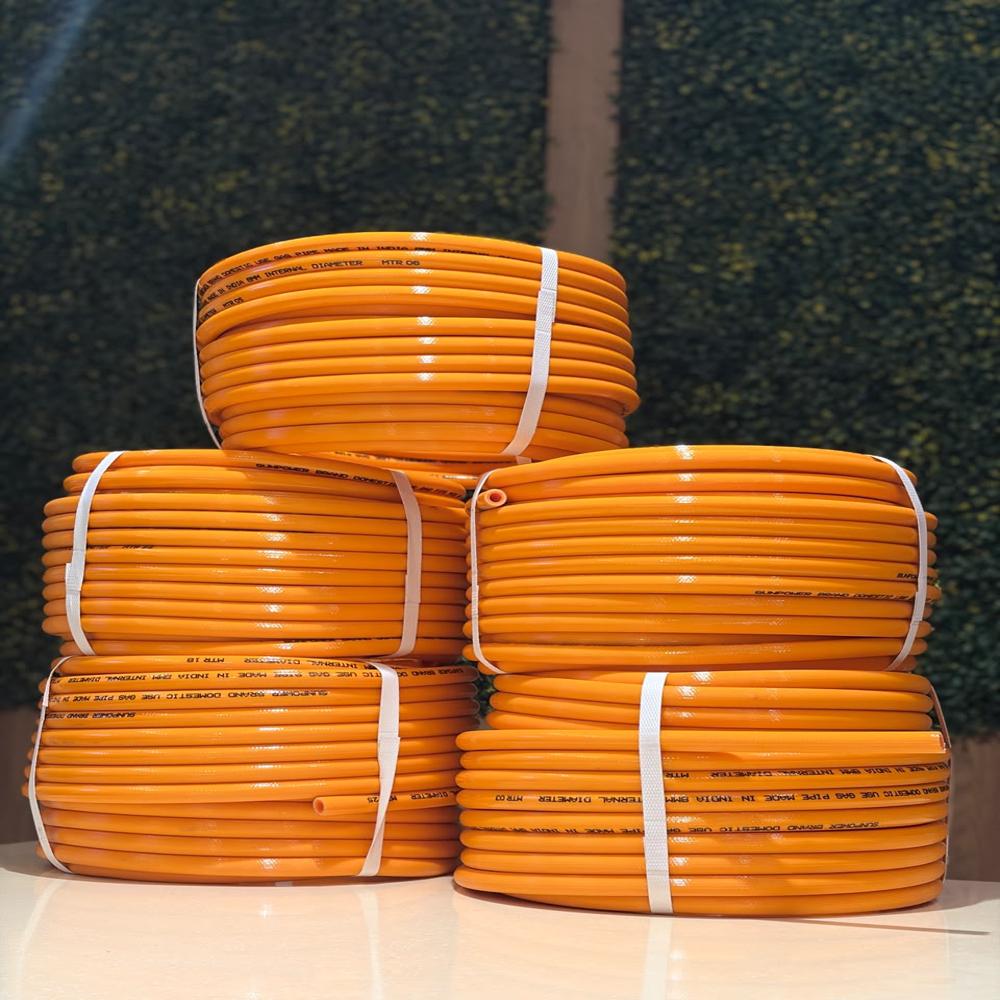

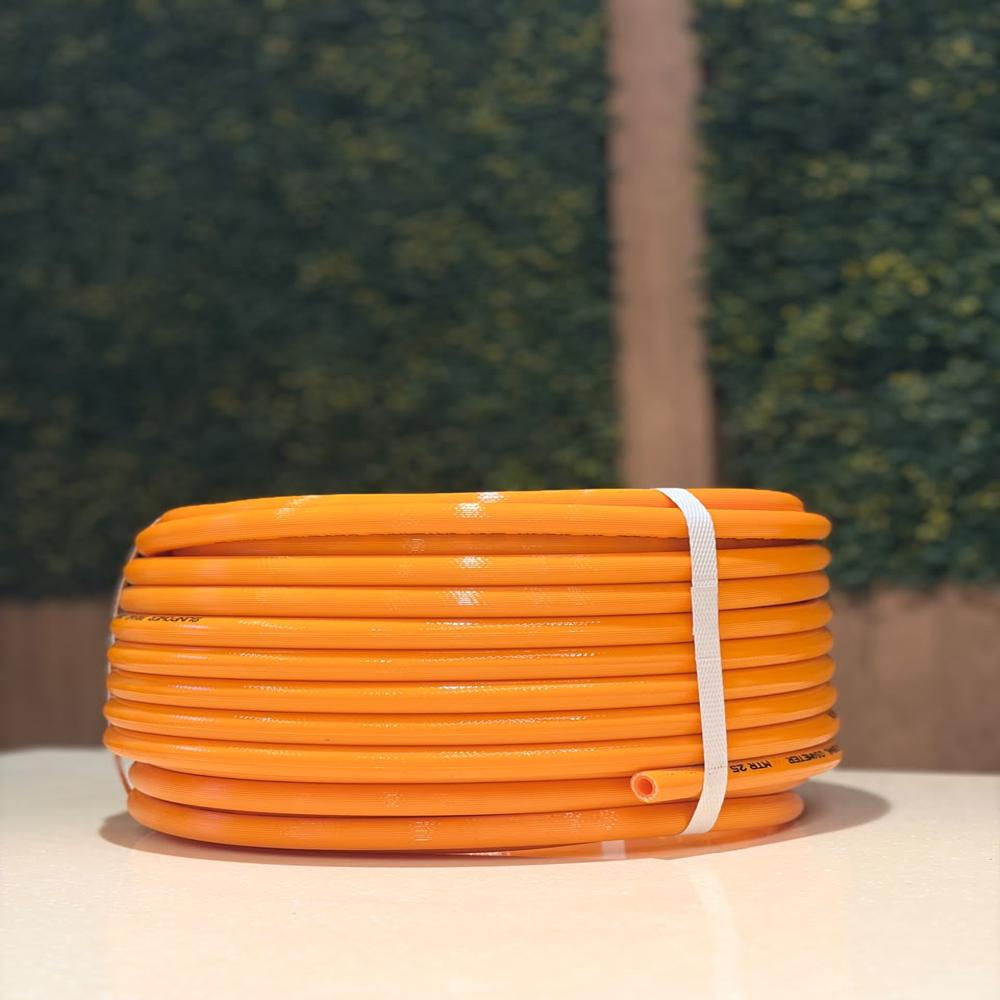

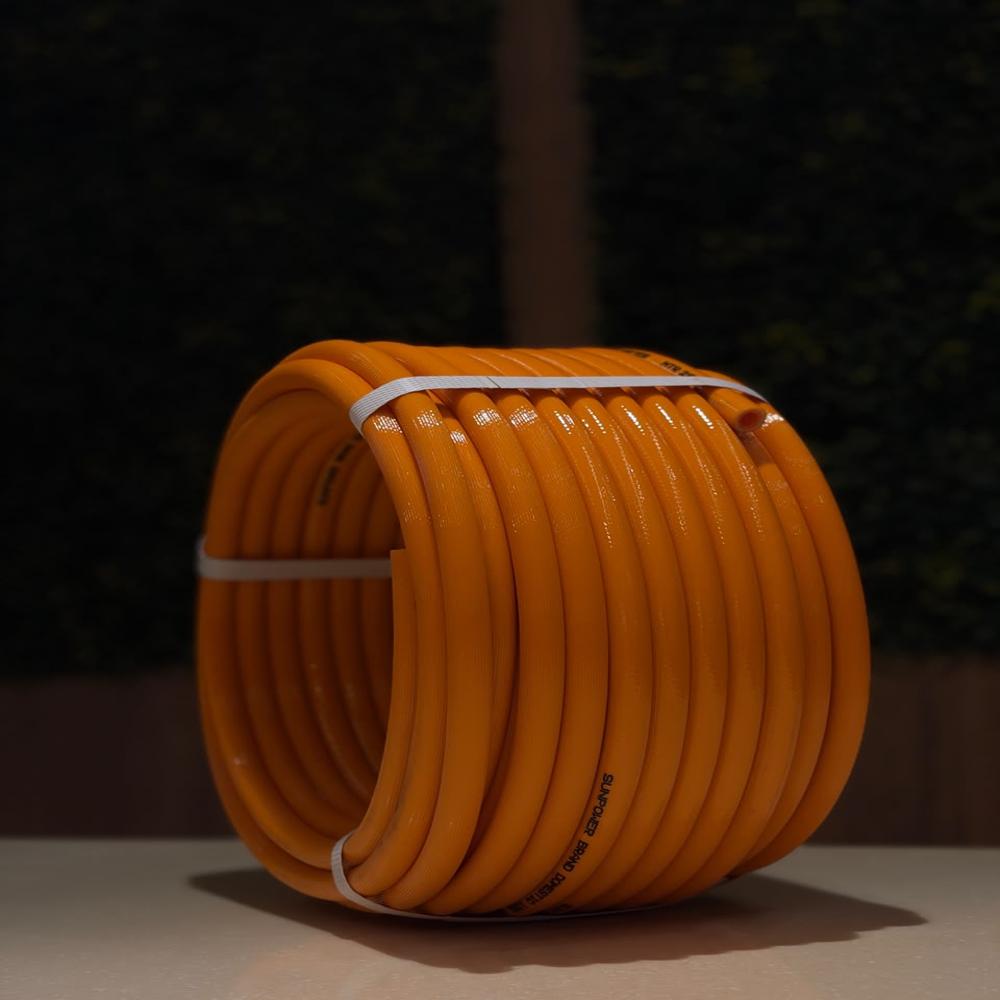

• Other, 5 Layer Spray Pipe

• Rated Pressure
• 4 bar (max)

• Sealing Type
• Leak-proof push-fit/barbed joints

• Section Shape
• Other, Circular

• Shape
• Other, Round pipe (coil form)

• Standard
• Other

• Surface Treatment
• Other, UV Resistant, Smooth finish

• Temperature Range
• -10C to 60C

• Tensile Strength
• 18-22 MPa

• Thickness
• 2 - 5 mm (variable by model)

• Thread Type
• Not applicable (push-fit/barbed recommended)

• Tolerance
• 0.2 mm

• Usage
• Water and nutrient spraying for irrigation

• Yield Strength
• 15 MPa

• Application
• other, Plumbing, Industrial Piping, HVAC

• Bend Radius
• 3-6 times outer diameter

• Color
• Silver

• Connection
• Other, Threaded / Flanged

• Connection Type
• Threaded / Flanged

• Diameter
• 6 mm - 100 mm

• Flexibility
• High

• Length
• 0.5 m - 10 m

• Material
• Stainless Steel

• Material Grade
• SS304 / SS316

• Outer Diameter
• 6 mm - 100 mm

• Product Type
• Other, Braided Pipe

• Rated Pressure
• Up to 16 Bar

• Sealing Type
• Rubber / PTFE Gasket

• Section Shape
• Other, Circular

• Shape
• Round

• Standard
• Other

• Surface Treatment
• Other, Polished

• Temperature Range
• -40C to +150C

• Tensile Strength
• 500 MPa

• Thickness
• 0.5 mm - 2 mm

• Thread Type
• BSP / NPT

• Tolerance
• 0.1 mm

• Usage
• Water, Gas, Steam Transfer

• Yield Strength
• 215 MPa
