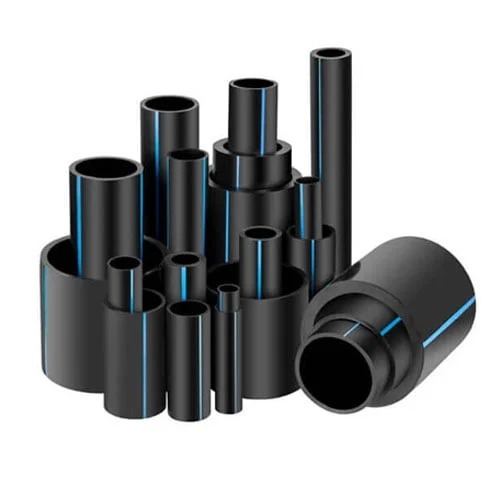

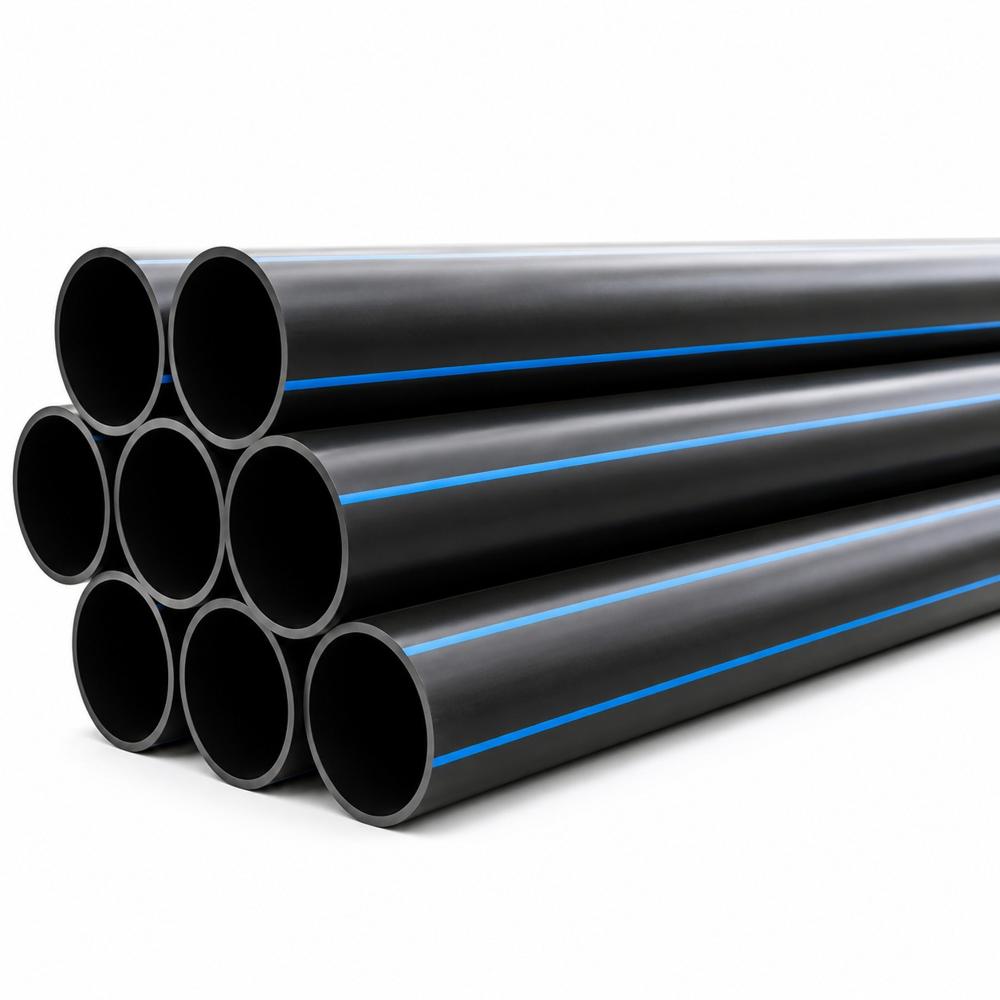

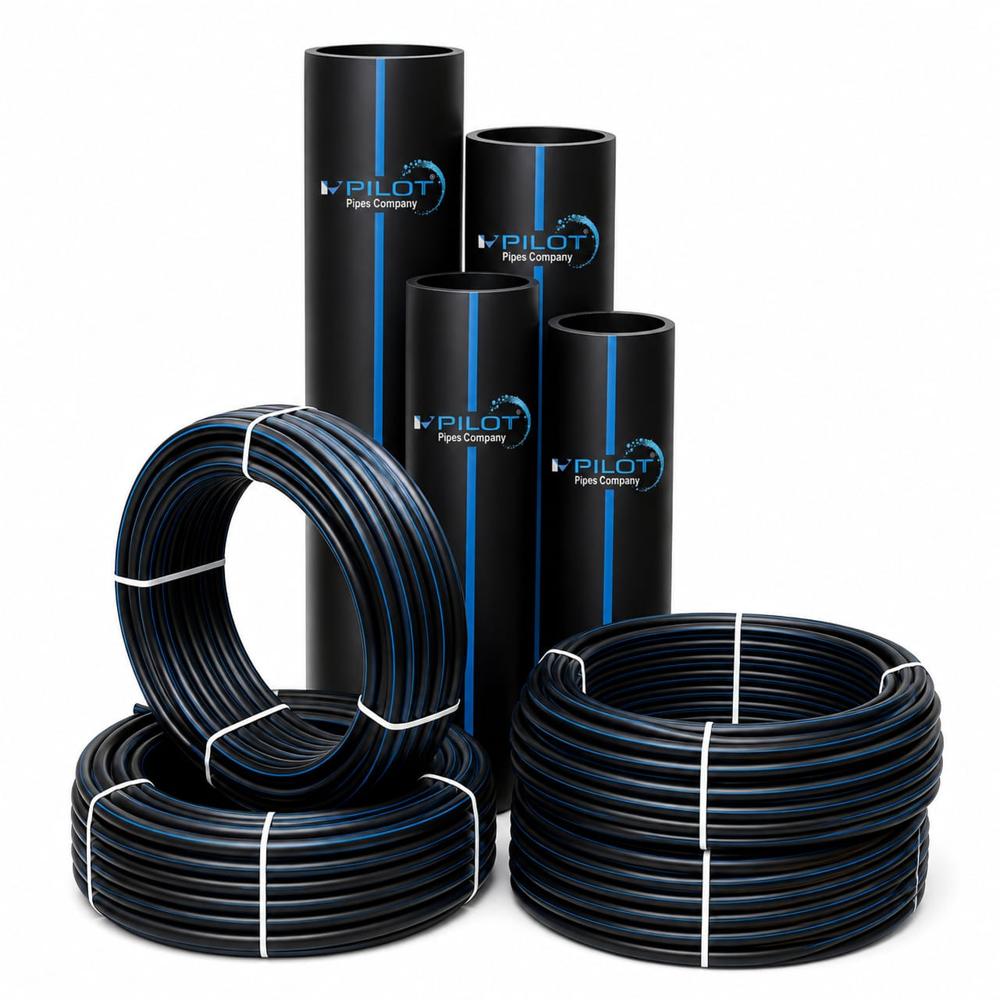

HDPE PIPES

• Application
• other, Potable water, sewage, industrial effluent, gas distribution

• Bend Radius
• 20-35 times pipe OD

• Color
• BLACK

• Connection
• Other, Butt fusion, Electro-fusion, Flanged, Compression Fittings

• Connection Type
• Fusion Welding / Push-Fit / Couplers

• Diameter
• 20 mm to 630 mm

• Flexibility
• High

• Length

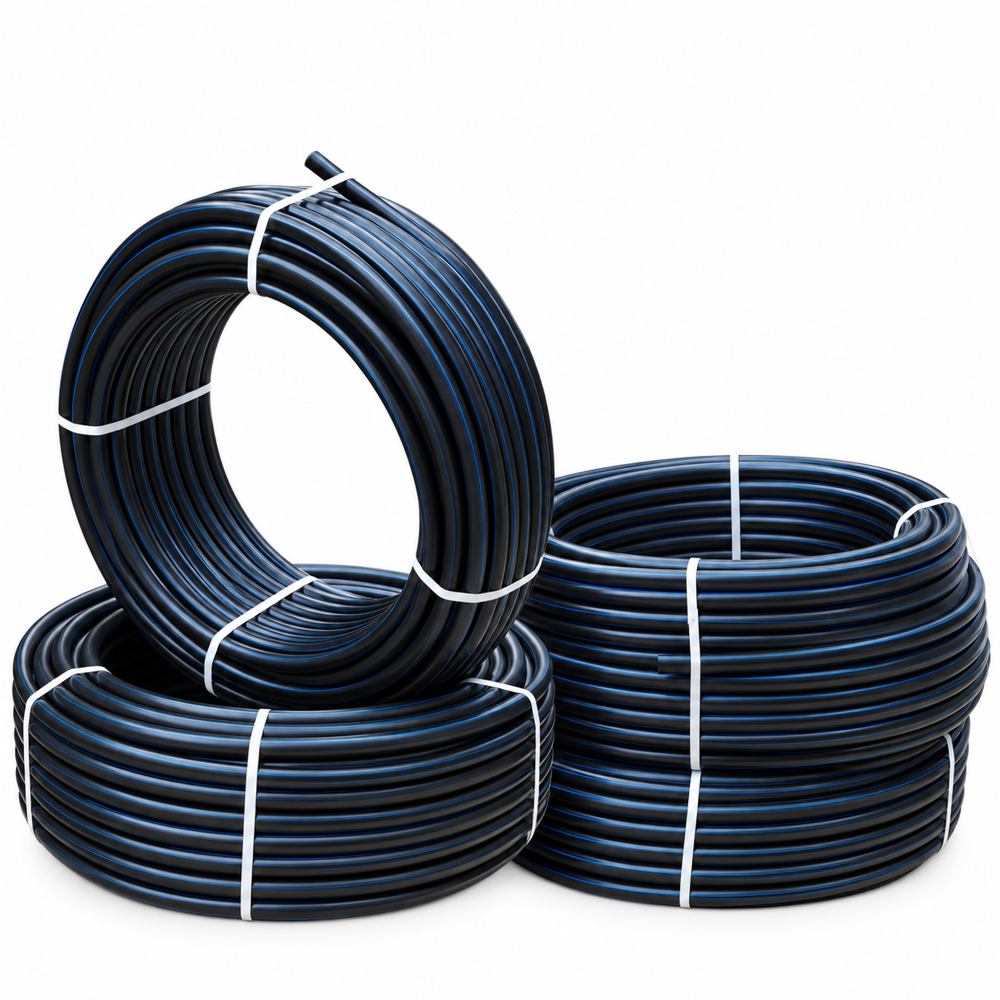

• 6 meters, 12 meters or as required (also available in coils up to 500 m for smaller diameters)

• Material
• HDPE

• Material Grade
• PE63, PE80, PE100

• Outer Diameter
• 20 mm - 630 mm or customized

• Product Type
• Other, HDPE Pipes

• Rated Pressure
• 2.5 kg/cm2 to 16 kg/cm2 (PN2.5 to PN16)

• Sealing Type
• Heat fusion or mechanical joint

• Section Shape
• Other, Circular

• Shape
• Other, Round/Cylindrical

• Standard
• Other

• Surface Treatment
• Other, Smooth, untreated

• Temperature Range
• -40C to +60C

• Tensile Strength
• 23 MPa

• Thickness
• Varies (2 mm to 60 mm depending on diameter)

• Thread Type
• Not Applicable (Threadless)

• Tolerance
• 1% or as per standard

• Usage
• Water supply, irrigation, gas transportation, industrial applications

• Yield Strength
• 19 MPa

• Application
• other, Potable Water, Gas Distribution, Industrial Effluent Disposal

• Bend Radius
• 20 x outer diameter (minimum)

• Coating Type
• None (Inherent UV and Chemical Resistance)

• Color
• Black

• Connection
• Other, Butt Fusion, Electrofusion, Flanged, Compression

• Connection Type
• Socket, Flange, Fusion, Compression

• Diameter
• 16 mm to 1000 mm

• Flexibility
• High

• Length
• 6 m, 12 m, or custom coil lengths

• Material
• Other

• Material Grade
• PE63, PE80, PE100

• Outer Diameter
• 16 mm - 1000 mm

• Product Type
• Other, HDPE Pipe

• Rated Pressure
• 2.5 to 16 bar

• Sealing Type
• Leak-proof Joint

• Section Shape
• Other, Circular

• Shape
• Round

• Standard
• Other

• Surface Treatment
• Other, Smooth Finish

• Temperature Range
• -40C to +60C

• Tensile Strength
• >= 350 kg/cm2

• Thickness
• 2 mm - 60 mm (Varies by size)

• Thread Type
• Not Threaded (Fusion & Compression Joints)

• Tolerance
• 0.05 mm

• Usage
• Water Supply, Agriculture, Irrigation, Sewerage, Industrial

• Yield Strength
• >= 300 kg/cm2
