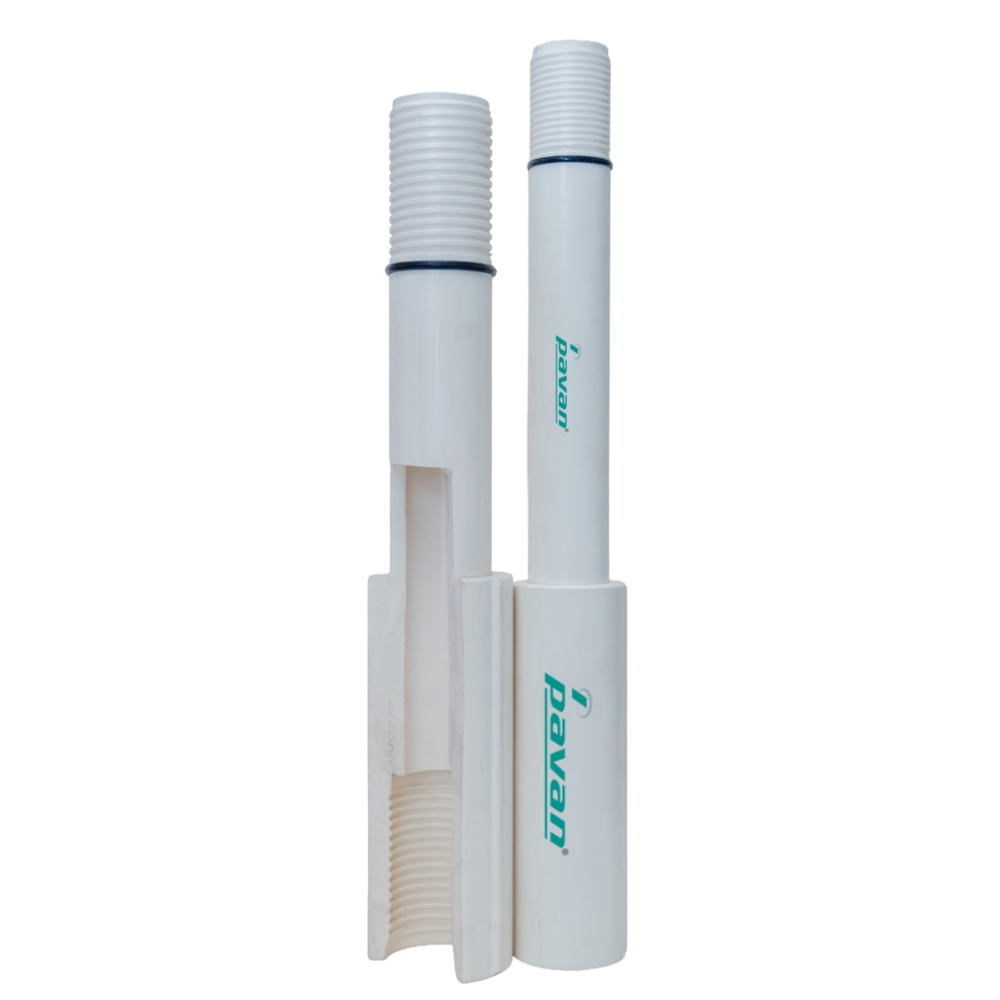

Designer UPVC Column Pipes

Get a Price/Quote

MOQ : 100 Pieces

Designer UPVC Column Pipes Specification

Flexibility
Rigid

Diameter
1 to 4 (25 mm to 110 mm)

Tensile Strength
450 kg/cm2

Coating Type
Non-coated

Yield Strength
Above 40 MPa

Bend Radius
Not bendable (Rigid pipes)

Sealing Type
Rubber Gasket / O-Ring

Tolerance
0.2 mm

Connection Type
Metallic Male-Female Threaded Coupler

Thread Type
Square Threads (ISO Standard)

Temperature Range
0C to 60C

Product Type
Designer UPVC Column Pipes

Material
PVC

Connection
Threaded

Shape
Rectangular

Standard
Other

Surface Treatment
Smooth finish

Outer Diameter
32 mm to 110 mm

Section Shape
Cylindrical

Length
3 m, 6 m and custom lengths

Thickness
2 mm to 7 mm (Varies with model)

Color
White (with colored end caps - red, green, blue, black)

Warranty
1 Year

Usage
Borewell, Submersible Pumps

Rated Pressure
Up to 16 kg/cm2

Application
Plumbing, Water Supply, Irrigation, Submersible Pump Installation

Material Grade
Virign uPVC, Lead-free compound

Burst Pressure
Above 45 kg/cm2

Joint Strength
High torque resistance up to 50 Nm

Life Expectancy
Over 50 years under standard conditions

Weight per Meter
Varies by size (lightweight)

Leakage Protection
Double rubber sealing mechanism

Internal Surface Finish
Ultra-smooth for minimum friction loss

Hydraulic Efficiency
Excellent due to smooth bore

UV Resistance
Protected against sunlight degradation

Corrosion Resistance
Resistant to rust, corrosion, and chemicals

Installation
Quick and easy, requires no special tools

Impact Strength
High

Designer UPVC Column Pipes Trade Information

Minimum Order Quantity
100 Pieces

Payment Terms
Cash in Advance (CID)

Supply Ability
1000 Pieces Per Month

Delivery Time
7 Days

Main Domestic Market
All India

About Designer UPVC Column Pipes

Our vision to excel and establish a strong foothold in the market has assisted us to evolve as a prominent manufacturer and exporter of Designer UPVC Column Pipes. These pipes are highly utilized for water supply purposes in residential and commercial buildings. We manufacture these pipes under the firm guidance of expert supervisors using the best quality UPVC. Highly demanded in the market, these pipes come in different sizes and specifications for clients. UPVC Column Pipes have lots of chemical resistance across their operating temperature range, with a broad of operating pressures. We offer these Designer UPVC Column Pipes at market-leading prices.

Outstanding Durability and Strength

Crafted with advanced uPVC material, these column pipes deliver exceptional resistance to rust, corrosion, and harsh chemicals. Their robust design provides high impact and joint strength-proven to withstand demanding borewell and submersible pump installations-ensuring a long service life, even under rigorous use.

Superior Hydraulic Performance

The ultra-smooth bore reduces friction losses, resulting in excellent hydraulic efficiency. With minimal internal scaling and a burst pressure above 45 kg/cm2, these pipes maintain optimal water flow for plumbing, irrigation, and pump installations while offering impressive safety margins.

Easy Installation and Versatile Application

Designer UPVC Column Pipes offer ease of installation, requiring no special tools thanks to their threaded metallic couplers and square threads (ISO Standard). Suitable for a temperature range of 0C to 60C, they are ideal for residential and agricultural water supply systems, irrigation, and submersible pump usage.

FAQ's of Designer UPVC Column Pipes:

Q: How are Designer UPVC Column Pipes installed for borewell and submersible pump applications?

A: These pipes can be quickly installed with metallic male-female threaded couplers and square threads. No special tools are required, and their light weight ensures easy handling during installation. Ensure the appropriate rubber gasket or O-ring sealing for optimal leakage protection.

Q: What makes these column pipes resistant to rust, corrosion, and chemicals?

A: The pipes are made from virgin lead-free uPVC compound, which is inherently non-reactive to water, most chemicals, and environmental factors. This construction ensures long-term resistance to rust, corrosive substances, and chemical exposure.

Q: When should I choose Designer UPVC Column Pipes over metal pipes?

A: Select these pipes when you need superior corrosion resistance, durability, and a longer service life-especially in applications where exposure to water, chemicals, or varying temperatures is frequent, such as borewells, irrigation, and submersible pump installations.

Q: Where can these pipes be used effectively?

A: Designer UPVC Column Pipes are ideal for borewell installations, water supply lines, domestic and industrial plumbing, and agricultural irrigation systems. Their high pressure rating, chemical resistance, and robust performance make them suitable for both residential and commercial environments.

Q: What is the process for ensuring leak-proof connections with these pipes?

A: Each pipe connects via a threaded coupler featuring a double rubber sealing mechanism, such as O-rings or gaskets, to prevent water leakage. Proper tightening to the specified torque and ensuring rubber seals are correctly seated guarantees leak-proof performance.

Q: What benefits do these pipes offer compared to conventional piping?

A: These UPVC pipes provide excellent longevity (over 50 years), high hydraulic efficiency, resistance to UV degradation, lightweight handling, and reliable protection against rust, corrosion, and leakage, thereby reducing maintenance costs and system downtime over time.

Q: How does the design of these pipes contribute to their hydraulic efficiency?

A: The inner surface of the pipes is ultra-smooth, which minimizes friction loss and prevents scaling. This design maximizes the flow rate and efficiency, ensuring consistent water delivery in all supported applications.
